Pixel Stack Geometry Audit
Generated on 2026-06-06 from compass.geometry.sample_pixels and PixelStack.
This report publishes geometry evidence, not optical performance. It verifies that representative sample-pixel presets expand into plausible solver input stacks with color-filter relief, metal-grid thickness, DTI, microlens, and photodiode windows present in the generated PixelStack.
Executive summary
- All audited presets produce color-filter relief slices rather than a single flat slab.
- The color-filter stack height covers the tallest RGB channel and the metal grid thickness for every audited preset.
- Photodiode x-y windows stay inside the pixel pitch for every audited preset.
- This report does not claim QE or crosstalk deltas. Use it before optical sweeps to confirm the geometry being simulated.

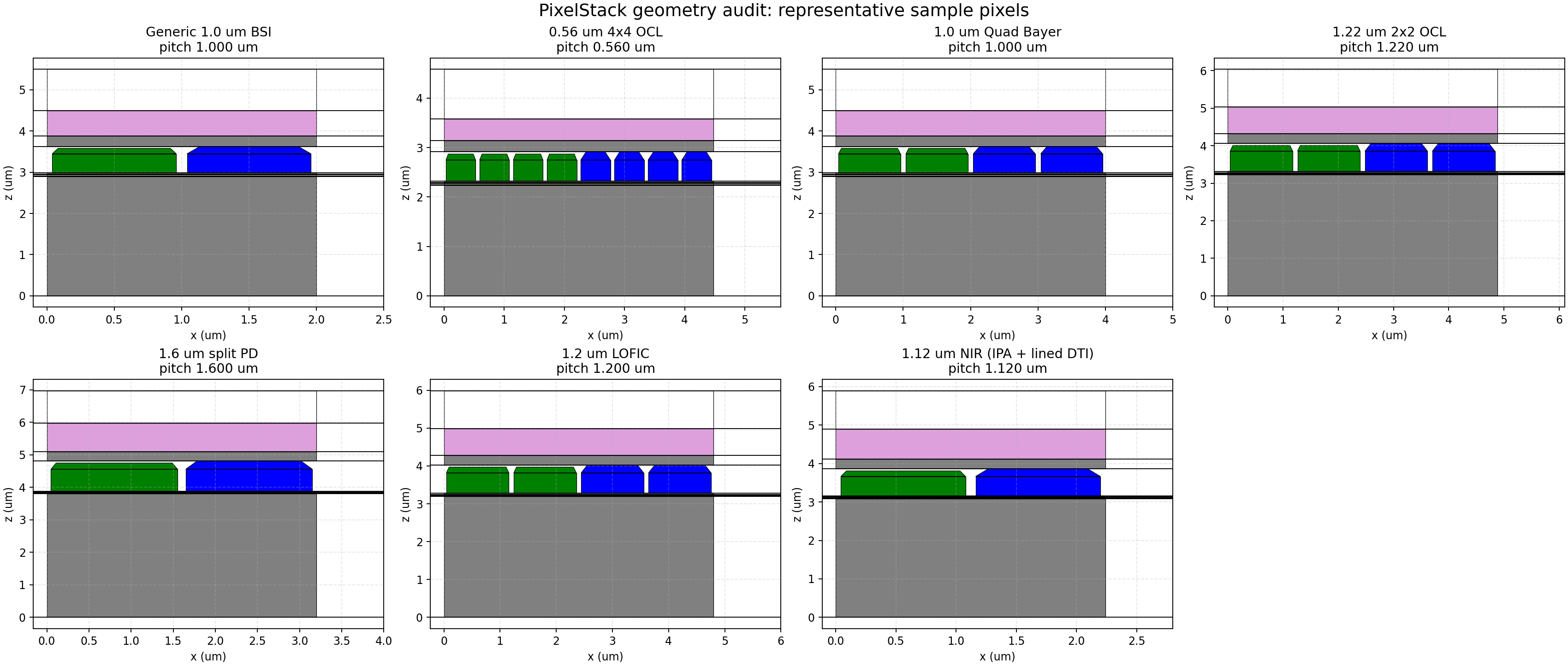

Geometry overview
Audited presets
| Preset | pitch um | unit cell | CF stack um | grid um | R/G/B CF um | min angle | CF slices | PD xy fill |
|---|---|---|---|---|---|---|---|---|
| Generic 1.0 um BSI | 1 | 2x2 | 0.648 | 0.468 | 0.624/0.6/0.648 | 62 | 11 | 0.49 |
| 0.56 um 4x4 OCL | 0.56 | 8x8 | 0.594 | 0.429 | 0.572/0.55/0.594 | 62 | 11 | 0.49 |
| 1.0 um Quad Bayer | 1 | 4x4 | 0.648 | 0.468 | 0.624/0.6/0.648 | 62 | 11 | 0.49 |
| 1.22 um 2x2 OCL | 1.22 | 4x4 | 0.756 | 0.546 | 0.728/0.7/0.756 | 62 | 11 | 0.49 |
| 1.6 um split PD | 1.6 | 2x2 | 0.94 | 0.679 | 0.905/0.87/0.94 | 62 | 11 | 0.774 |
| 1.2 um LOFIC | 1.2 | 4x4 | 0.745 | 0.538 | 0.718/0.69/0.745 | 62 | 11 | 0.423 |
| 1.12 um NIR (IPA + lined DTI) | 1.12 | 2x2 | 0.702 | 0.507 | 0.676/0.65/0.702 | 62 | 11 | 0.49 |
Checks
| Preset | CF covers channels | grid <= stack | multi-slice relief | PD inside pixel |
|---|---|---|---|---|
| Generic 1.0 um BSI | yes | yes | yes | yes |
| 0.56 um 4x4 OCL | yes | yes | yes | yes |
| 1.0 um Quad Bayer | yes | yes | yes | yes |
| 1.22 um 2x2 OCL | yes | yes | yes | yes |
| 1.6 um split PD | yes | yes | yes | yes |
| 1.2 um LOFIC | yes | yes | yes | yes |
| 1.12 um NIR (IPA + lined DTI) | yes | yes | yes | yes |
Regeneration
powershell
uv run python scripts\generate_geometry_reports.pyGenerated metrics are stored at docs/public/reports/geometry/pixel-stack-audit/geometry_metrics.json.
